RAM Handlebar U-Bolt Mount with Universal RAM® X-Grip® Cradle for 7"-8" Tablets (RAM-B-149Z-UN8U)

RAM Handlebar U-Bolt Mount with Universal RAM® X-Grip® Cradle for 7"-8" Tablets (RAM-B-149Z-UN8U)

RAM-B-149Z-UN8U

$113.95
$113.95
Tax included.

Features

  • Compatible Devices: See all in Extra Info tab
  • U-Bolt Dimensions: 0.50" to 1.25"
  • Minimum Width = 2.5" (Minimum Height = 7")
  • Maximum Width = 5.75" (Minimum Height = 4")
  • Depth = 0.875"
  • Spring loaded cradle expands and contracts for perfect fit of your tablet
  • Rubber coated tips will hold your tablet firm and stable
  • Socket technology allows for multiple adjustment angles and articulation of your tablet
  • Easy access grip knobs located on the back of the cradle for quick release of your tablet
  • Includes Tether for open cockpit and extreme environments
  • Lifetime warranty
  • Rustproof
  • Made in U.S.A.
  • Material: High Strength Composite Powder Coated Marine Grade Aluminum & Marine Grade Stainless Steel Components
  • Ball Size: 1" Rubber Ball "B" Size
  • Note: The "U" in the part number reflects product packaged in poly bag.
  • Weight: 0.8 lbs.
  • Check out and learn more about this RAM Mount at Mounts Australia.
  • Visit Mounts Australia to view the complete product range of RAM Mounts we offer.

Tech Specs

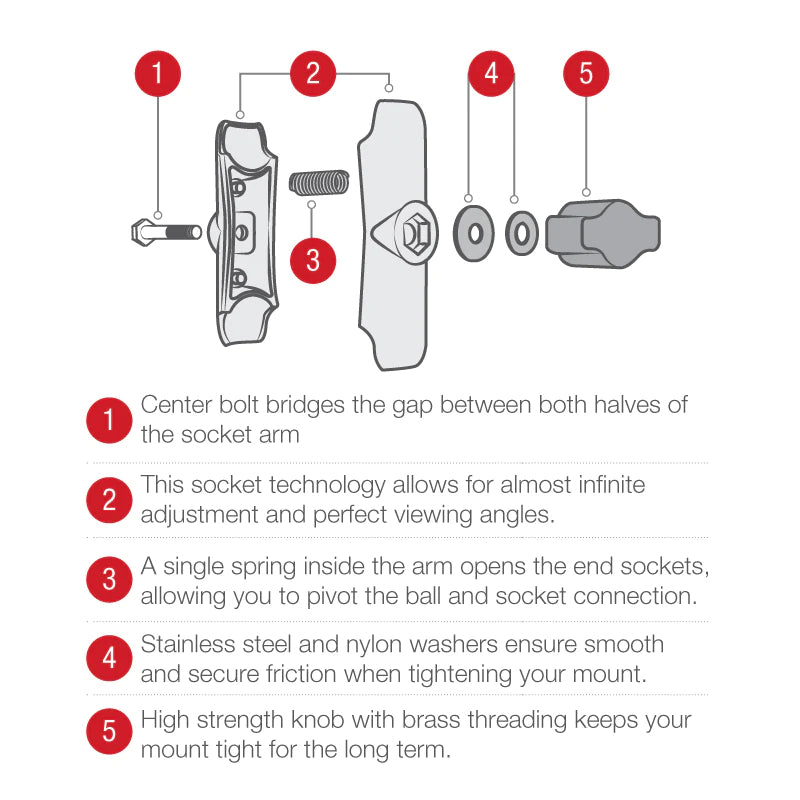

    The included composite rail adapter can narrow the rail to a minimum width of 0.5". The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles. The spring loaded RAM® X-Grip® cradle expands and contracts allowing for a perfect custom fit of your 7"-8" tablet. Included are extra easy access grip knobs located on the back of the cradle for quick release of your tablet.

    The RAM® X-Grip® includes a device tether recommended for outdoor applications. The cradle is compatible with handheld devices that will fit the dimensions listed below. It is important to verify the dimensions of your handheld device with a case/sleeve/skin when determining the overall size.

Package Contents

    Contains 1 x RAM Handlebar U-Bolt Mount with Universal RAM® X-Grip® Cradle for 7"-8" Tablets (RAM-B-149Z-UN8U)

Extra Info

Compatibility:
  • 7"-8" Tablets Amazon: Fire 7 Fire HD 8 Kindle Kindle Oasis Kindle Paperwhite Kindle Voyage
  • Apple: iPad mini (1st Generation) iPad mini 2 iPad mini 3 iPad mini 4 iPad mini 5
  • ASUS: MeMO Pad 8 VivoTab 8 ZenPad 8.0 ZenPad C 7.0 ZenPad S 8.0 ZenPad Z8 ZenPad Z8s
  • Dell: Venue 7 Venue 7 (2014) Venue 7 3741 Venue 8 Venue 8 (2014) Venue 8 7840 Venue 8 Pro Venue 8 Pro 5855
  • Google: Nexus 7
  • HP: Pro Tablet 408 Slate 7
  • Huawei: MediaPad M3 MediaPad M3 Lite MediaPad T1 7.0 MediaPad T1 8.0 MediaPad T3 7 MediaPad T3 8
  • Lenovo: Ideapad Miix 300 IdeaTab A1000 IdeaTab A2107 IdeaTab A3000 Tab 2 A7-10 Tab 2 A7-20 Tab 2 A7-30 Tab 2 A8 Tab 4 8 Tab 4 8 Plus Tab 7 Essential Tab A7-30 Tab A7-40 Tab A7-50 Tab A8-50 Tab M8 HD Tab S8 Tab3 7 Tab3 8 Yoga Tablet 8
  • LG: G Pad 7.0 G Pad F 8.0 (2nd Gen) G Pad F2 8.0 G Pad II 8.0 G Pad X 8.0 G Pad X II 8.0
  • Nvidia: Shield Tablet
  • Rand: McNally OverDryve 7 McNally OverDryve 7 Pro McNally OverDryve 7 RV McNally OverDryve 7c McNally OverDryve 8 Pro McNally Road Explorer 7 McNally Road Explorer 70 McNally RV Tablet 70 McNally RVND 7 McNally TND 740 McNally TND Tablet 70 McNally TND Tablet 80
  • Samsung: Galaxy Tab 2 7.0 Galaxy Tab 3 7.0 Galaxy Tab 3 8.0 Galaxy Tab 3 Lite 7.0 Galaxy Tab 4 7.0 Galaxy Tab 4 8.0 Galaxy Tab 7.7 Galaxy Tab A 7.0 Galaxy Tab A 7.0 Galaxy Tab A 8.0 Galaxy Tab A 8.0 (2017) Galaxy Tab A 8.0 (2018) Galaxy Tab A 8.0 (2019) Galaxy Tab A 8.4 Galaxy Tab Active2 Galaxy Tab E 7.0 Galaxy Tab E 8.0 Galaxy Tab Pro 8.4 Galaxy Tab S 8.4 Galaxy Tab S2 8.0
  • Vankyo: MatrixPad Z1 7"
    • View full details

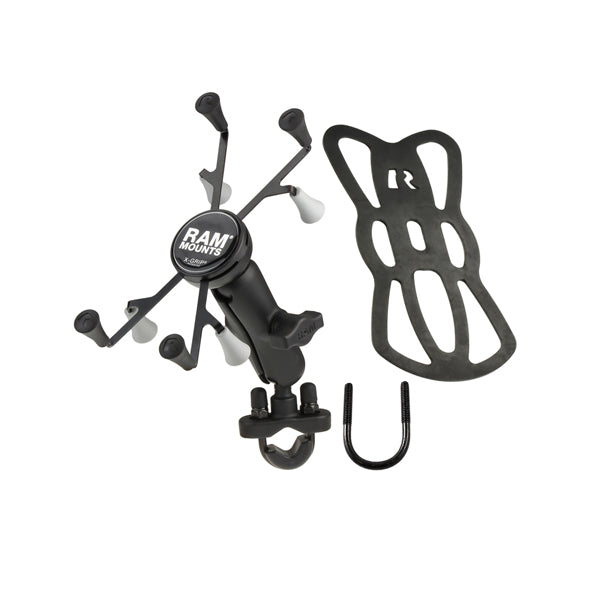

    The RAM-B-149Z-UN8U consists of a zinc coated u-bolt base double socket arm and universal RAM® X-Grip® clamping cradle for 7"-8" tablets. Included in this package is hardware that will accommodate rails from 0.50" to 1.25" in diameter. The base includes black cover caps to be placed over the exposed ends of the u-bolt.
