RAM Zinc U-Bolt Rail Base with 1" Ball (RAM-B-231ZU)
RAM Zinc U-Bolt Rail Base with 1" Ball (RAM-B-231ZU)
RAM-B-231ZU
Regular price
$34.00
Regular price
Sale price
$34.00
Unit price
per
Tax included.
Features
Features
- Zinc-coated metal U-bolt base with 1" rubber ball is designed to sit at right angles to mounting rail; includes black cover caps for exposed ends of the U-bolt
- Compatible with any B size RAM® Mounts component; ball and socket technology allows for near-infinite adjustability
- Made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding environments
- Backed by a lifetime warranty
Tech Specs
Tech Specs
- Clamp Range: .5" - 1.25" diameter
- Ball Size: B Size (1")
- Weight Capacity:
Standard Use: 2 lbs Heavy-Duty Use: 1 lb
- Weight: 0.27 lb
- Material: Marine-grade aluminum
Package Contents
Package Contents

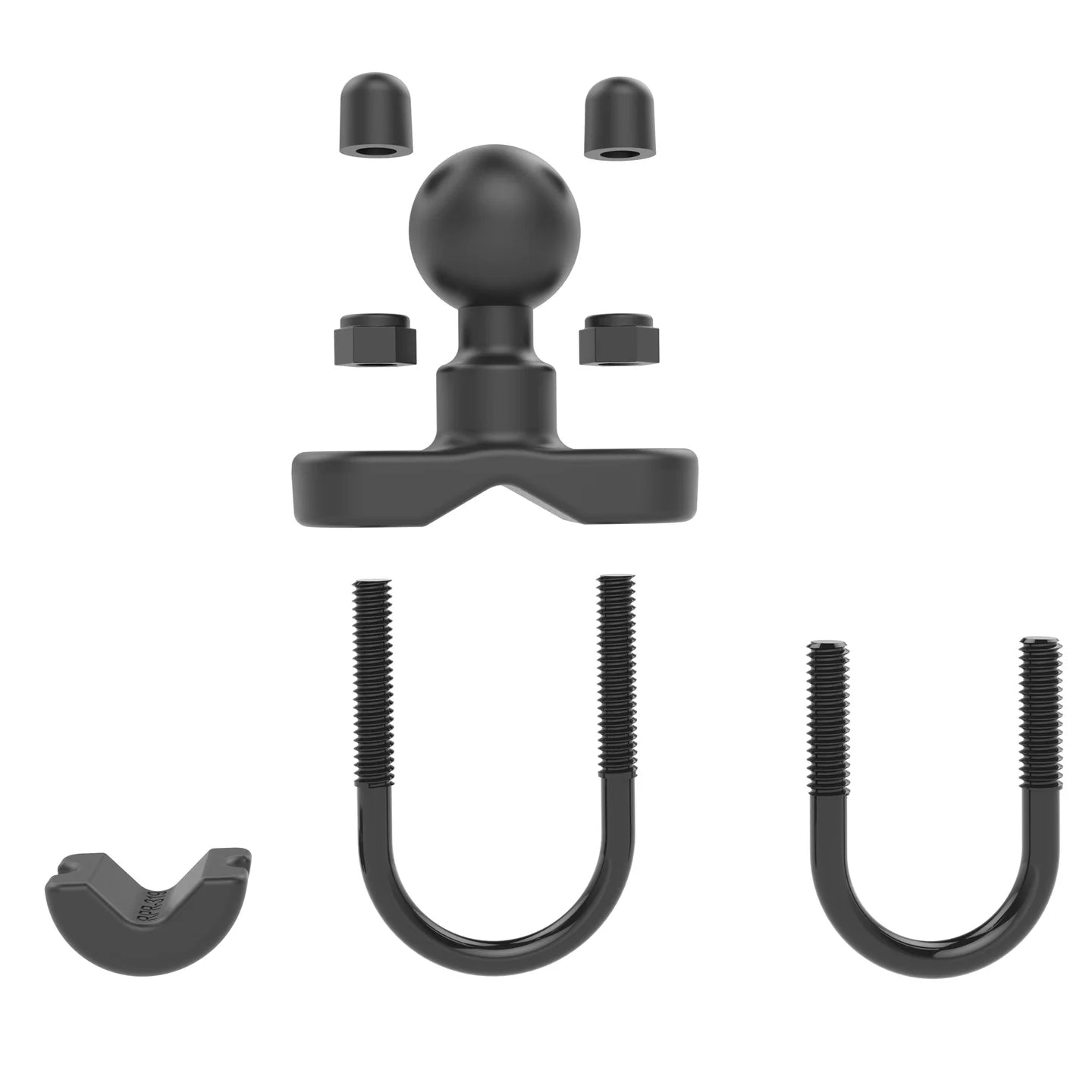

- Contains 1 x RAM Zinc U-Bolt Rail Base with 1" Ball (RAM-B-231ZU)
Assembly Guide
Assembly Guide
-
Instructions
- RAM U-Bolt Base Assembly Guide

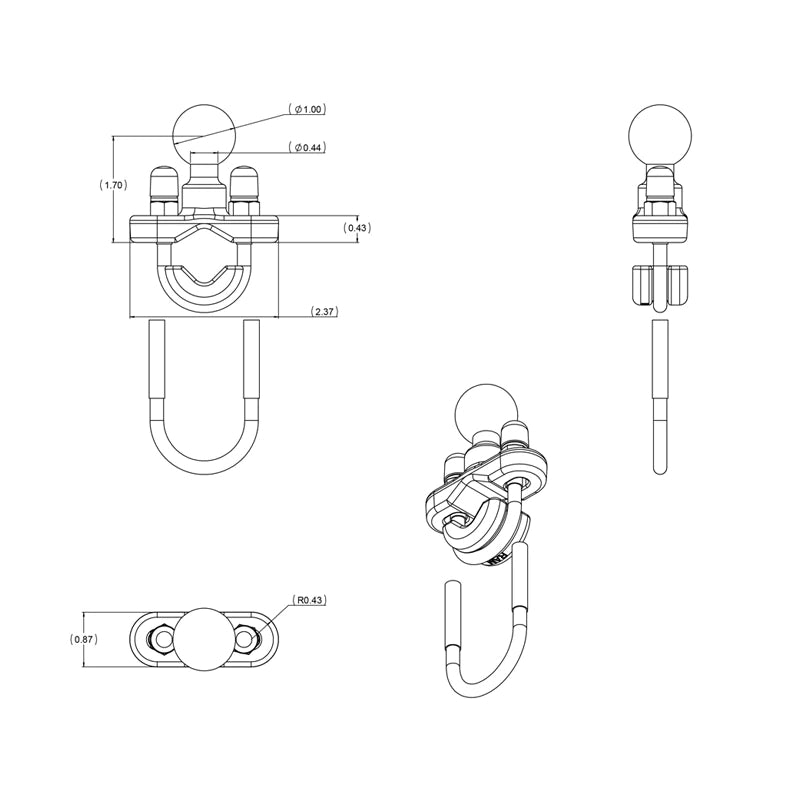

- Drawing File - U-Bolt Ball Base
Documents

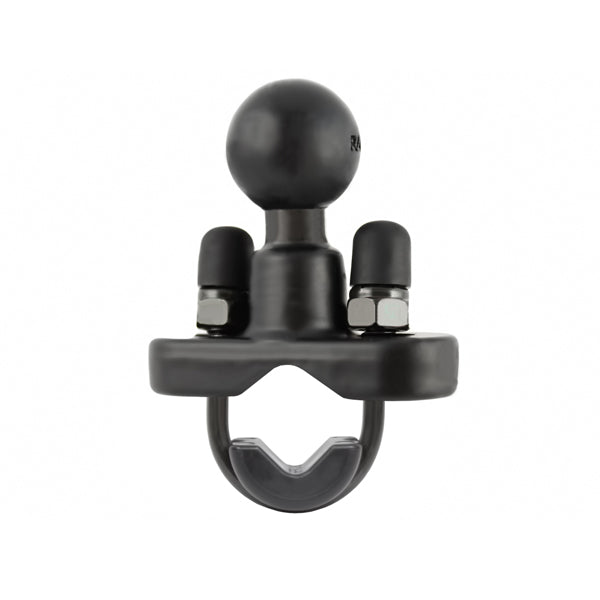

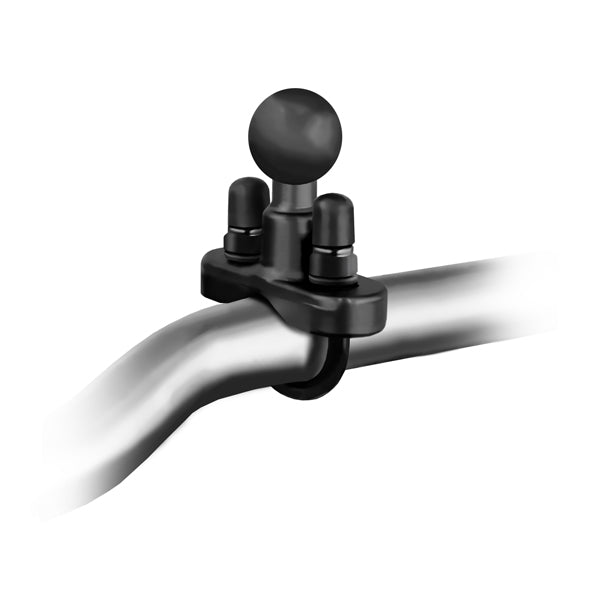

The RAM-B-231ZU consists of a B size 1" rubber ball designed to sit at right angles to the mounting rail. The zinc coated metal U-bolt accommodates rails in diameter from 0.5" to 1.25" in diameter. Included are black cover caps to be placed over the exposed ends of the U-bolt and a composite adapter that can narrow the rail to a minimum width of 0.5".
