RAM Handlebar U-Bolt Mount with Universal RAM® X-Grip® Cell/iPhone Cradle (RAM-B-149Z-UN7U)

RAM Handlebar U-Bolt Mount with Universal RAM® X-Grip® Cell/iPhone Cradle (RAM-B-149Z-UN7U)

RAM-B-149Z-UN7U

$122.00
$122.00
Tax included.

Features

  • Compatible Devices: See all in Extra Info tab
  • U-Bolt Dimensions:0.50" to 1.25"
  • Minimum Width = 1.875" (Minimum Height = 4.25")
  • Maximum Width = 3.25" (Minimum Height = 2.25")
  • Depth = 0.875"
  • Rustproof
  • High strength composite and stainless steel construction
  • Spring loaded cradle expands and contracts for perfect fit of your device
  • Rubber coated tips will hold device firm and stable
  • Socket technology allows for multiple adjustment angles and articulation of device
  • Includes Tether for open cockpit and extreme environments
  • Lifetime warranty
  • Made in U.S.A.
  • Material: Powder Coated Marine Grade Aluminum Marine Grade Stainless Steel Components & High Strength Composite
  • Ball Size: 1" Rubber Ball "B" Size
  • Note: The "U" in the part number reflects product packaged in poly bag. RAM highly recommends using the provided Tether for all open cockpit applications while using this product.
  • Weight: 0.78 lbs.
  • Check out and learn more about this RAM Mount at Mounts Australia.
  • Visit Mounts Australia to view the complete product range of RAM Mounts we offer.

Tech Specs

    The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles. The included composite rail adapter can narrow the rail to a minimum width of 0.5". The included RAM® X-Grip® cradle has a clean and clever four leg design that sports great holding power without hiding your phone behind foam pads and plastic. The spring loaded RAM® X-Grip® cradle expands and contracts allowing for a perfect custom fit of your cell phone. The perfect complement to the modern sleek interior of today's vehicles the RAM® X-Grip® is the cell phone cradle evolved.

    The RAM® X-Grip® includes a device tether recommended for outdoor applications. The cradle is compatible with handheld devices that will fit the dimensions listed below. It is important to verify the dimensions of your handheld device with a case/sleeve/skin when determining the overall size.

Package Contents

    Contains 1 x RAM Handlebar U-Bolt Mount with Universal RAM® X-Grip® Cell/iPhone Cradle (RAM-B-149Z-UN7U)

Extra Info

Compatibility:
  • Apple: iPhone 6s, iPhone 7, iPhone 8, iPhone SE, iPhone X, iPhone Xs, iPhone Xr, iPhone 11, iPhone 11 Pro, iPhone 12, iPhone 12 mini, iPhone 12 Pro, iPhone 13, iPhone 13 mini, iPhone 13 Pro, iPhone 14, iPhone 14 Pro, iPhone 15 Pro
  • Blackberry: DTEK 50, DTEK 60, KEYone
  • Garmin: Approach G8, Edge 1030, Edge Explore 1000
  • Google: Pixel, Pixel XL, Pixel 2, Pixel 3, Pixel 3a, Pixel 4, Pixel 4 XL, Pixel 4a, Pixel 5, Pixel 6, Pixel 6 Pro, Pixel 7, Pixel 8
  • HTC: U11, U11 life
  • Huawei: Mate 20 Pro, P30 Pro
  • LG: Aristo, Aristo 2, Exalt LTE, G5, G5 Silver, G6, G6+, G7 ThinQ, G8 ThinQ, Grace LTE, K20, K20 Plus, K20 V, K3, K3 2017, K8 2017, Phoenix 3, Q6, Rebel 2 LTE, Rebel 3 LTE, Risio 2, Tribute Dynasty, Tribute HD, V30, V35 ThinQ, V40 ThinQ, Wine LTE, Zone 4
  • Motorola: moto e4, moto g5s plus, moto g6, moto g7 power, moto X2, moto X4, razr
  • Nokia: 1, 2, 3, 5, 6, 8, 9 PureView, 216, 230, 150 Dual SIM, 3310 Dual SIM, 7 plus, 8 Sirocco, 8110 4G
  • OnePlus: 6T, 7, 7T, 7T Pro, 7 Pro
  • Panasonic: Eluga X1 Pro
  • Samsung: Galaxy A3, Galaxy A3 (2016), Galaxy A3 (2017), Galaxy A5, Galaxy A5 (2016), Galaxy A5 (2017), Galaxy A6, Galaxy A6+, Galaxy A7 (2016), Galaxy A8+, Galaxy A8 (2018), Galaxy A8+ (2018), Galaxy A10, Galaxy A10e, Galaxy A10s, Galaxy A11, Galaxy A20e, Galaxy A30, Galaxy A40, Galaxy A50, Galaxy A50s, Galaxy AMP 2, Galaxy AMP Prime, Galaxy AMP Prime 2, Galaxy C5, Galaxy E5, Galaxy Express 3, Galaxy Express Prime 2, Galaxy Grand Max, Galaxy J1, Galaxy J1 (2016), Galaxy J2, Galaxy J2 (2016), Galaxy J2 (2017), Galaxy J3 (2016), Galaxy J3 (2017) International, Galaxy J3 Emerge, Galaxy J3 Prime, Galaxy J3 V, Galaxy J5, Galaxy J5 (2016), Galaxy J5 (2017), Galaxy J7 (2016), Galaxy J7 (2017), Galaxy J7 Perx, Galaxy J7 Prime, Galaxy J7 Prime 2, Galaxy Luna, Galaxy Note 8, Galaxy Note Fan Edition, Galaxy Note 10, Galaxy Note20, Galaxy On NXT, Galaxy On5, Galaxy On7 Prime, Galaxy On8, Galaxy S5, Galaxy S5 Neo, Galaxy S6, Galaxy S6 Active, Galaxy S6 Edge, Galaxy S6 Edge+, Galaxy S7, Galaxy S7 Active, Galaxy S7 Edge, Galaxy S8+, Galaxy S9, Galaxy S9+, Galaxy S10, Galaxy S10+, Galaxy S10e, Galaxy S20, Galaxy S20+, Galaxy S20 FE 5G, Galaxy S20 Ultra 5G, Galaxy S22 5G, Galaxy S22+ 5G, Galaxy S23, Galaxy S24, Galaxy V Plus, Galaxy XCover 3, Galaxy XCover 4, Galaxy XCover 5, Galaxy Z Fold2, Galaxy Z Fold3, W2017, Z1, Z2, Z3, Z4
  • Sony: Xperia L1, Xperia X, Xperia X Compact, Xperia X Performance, Xperia XA, Xperia XA1, Xperia XA1 Plus, Xperia XA2, Xperia XZ, Xperia XZ1, Xperia XZ1 Compact, Xperia XZ2, Xperia XZ2 Compact, Xperia XZ3, Xperia XZs, Xperia Z3, Xperia Z3+, Xperia Z5, Xperia Z5 Compact
  • Xiaomi: Mi 9, Mi 9 Explorer, Mi Mix 2S, Mi Mix 3
  • ZTE: Axon 9 Pro, Axon 10 Pro
View full details

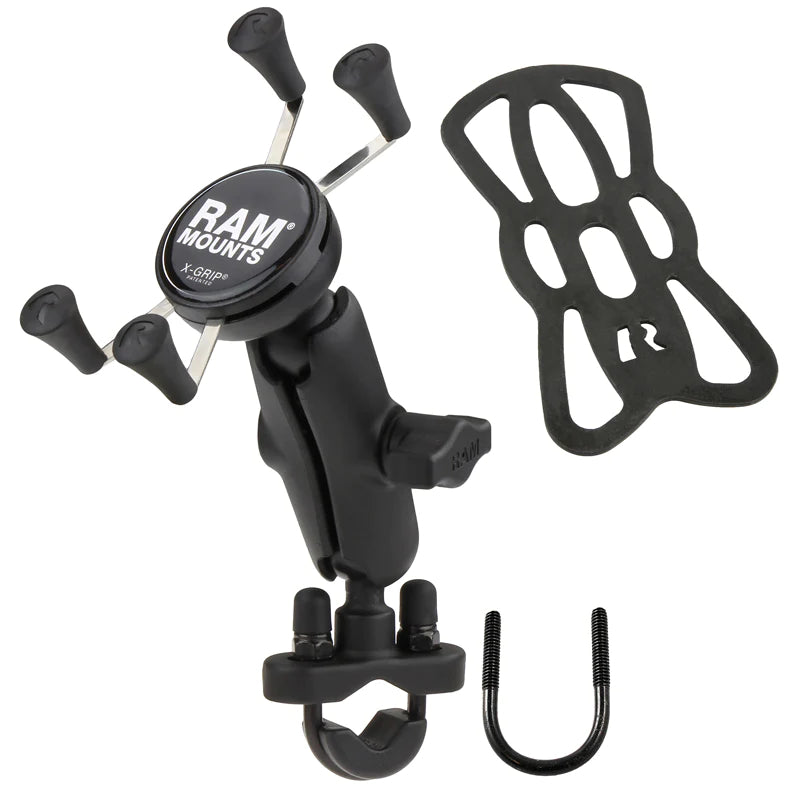

The RAM-B-149Z-UN7U consists of a zinc coated u-bolt base double socket arm and universal RAM® X-Grip® cradle. Included in this package is hardware that will accommodate rails from 0.50" to 1.25" in diameter. The base includes black cover caps to be placed over the exposed ends of the u-bolt.
